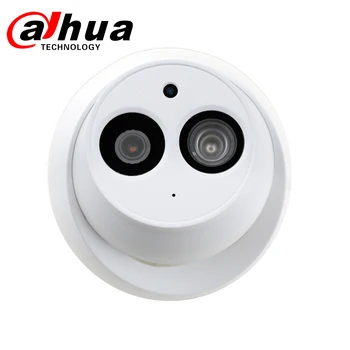

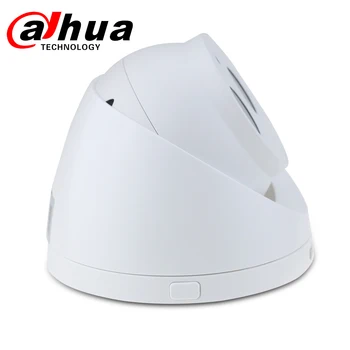

Dahua IP Camera Security 4MP IPC-HDW4433C-A HD 6MP IPC-HDW4631C-A Camara Surveillance Night Vision IR PoE Built-in Mic Cameras

Price range: $73.29 through $97.57

4MP NO LOGO4MP with LOGO6MP NO LOGO6MP with LOGO
2.8mm3.6mm
Clear
Add to Wishlist
SKU: 32998910315 Category:

Brand Model High Definition Max Resoltuion MIC Casing Night Vision Power Supply
Dahua IPC-HDW4433C-A 4.0 Megapixels 2592(H)*1520(V) 1 Built in MIC Plastic starnight DC12V, PoE (802.3af)
Dahua IPC-HDW4631C-A 6.0 Megapixels 3072(H) x 2048(V) 1 Built in MIC Metal standard DC12V, PoE (802.3af)



IPC-HDW4433C-A IPC-HDW4631C-A

>1/3” 4Megapixel progressive scan CMOS
>H.265/H.264&MJPEG Dual code
>20fps4M(2688*1520), 25/30fps3M(2304*1296)
>WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
>Smart Detection supported
>Multiple network monitoring:Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm optional)
>Max. IR LEDs Length 30m
>PoE
>Onvif 2.4

> 1/2.9” 6Megapixel progressive scan STARVIS? CMOS
> H.265&H.264&MJPEG triple-stream encoding
> 20fps@6MP(3072×2048), 25/30fps@4MP(2688×1520)
> Smart detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm optional)
> Built-in Mic
> Max. IR LEDs Length 30m
> PoE

Model-IPC-HDW4433C-A Model-IPC-HDW4631C-A
1.Camera 1.Camera
Image Sensor : 1/3” 4 Megapixel progressive scan CMOS Image Sensor : 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels : 2688(H)x1520(V) Effective Pixels : 3072(H) x 2048(V)
Scanning System : Progressive Scanning System : Progressive
Electronic Shutter Speed : Auto/Manual, 1/3~1/100000s
2.Electronic Shutter Speed Minimum Illumination : 0.002Lux( Color),0.0002( black/white),0Lux(IR on)
Min.lllumination : 0.002ux/F2.0(Color),0lux/F2.0(IR on) S/N Ratio : More than 56dB
S/N Ratio : More than 56dB IR Distance : Distance up to 50m
IR On/Off Control : Auto/ Manual
3.Camera Features
MAX.IR LEDs Length : 50m 2.Lens
Day/Night : Auto(ICR)/Color/B/W Lens Type : Fixed
Backlight Compensation : BLC/HLC/WDR(120dB) Mount Type : Board-in
White Balance : Focal Length : 2.8mm (3.6mm 6mm optional)
Auto/Sunny/Night/Outdoor/Customized Max. Aperture : F2.5/F2.2/F2.0
Gain Control : Auto/Manual Angle of View : 2.8mm : H : 99° V : 69.4° 3.6mm : H : 70° V : 48° 6mm : H : 47.34° V : 33.75°
Noise Reduction : 3D Focus Control : Fixed
Privacy Masking : Up to 4 areas Close Focus Distance : 0.8m (1.2m,3.9m)
4.Lens 3.Intelligence
Focal Length : 2.8mm/3.6mm/6mm optional IVS : Tripwire, Intrusion, Object Abandoned/Missing
Max Aperture : F1.5/F1.5/F1.5 Advanced Intelligent Functions : Face Detection
Focus Control : Manual
Angle of View : 4.Video
2.8mm : H : 104.2°;V : 58.3°; Compression : H.265/H.264/MJPEG
3.6mm : H : 79°;V : 42.4°; Streaming Capability : 3 Streams
6mm : H : 48.6°;V : 27.3°;” Resolution : 6M(3072×2048)/5M(3072×1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048×1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)
Lens Type : Fixed lens Frame Rate : “Main Stream : 6M(1~20fps)/4M(1~25fps);
Mount Tyoe : Board-in Type Sub Stream : D1(1~25fps);
Third Stream : 1080P(1~24fps)”
5.Video Bit Rate : 73Kbps～10240Kbps
Compression : H.265/H.264/H.264H/H.264B/MJPEG Day/Night : Auto(ICR) / Color / B/W
Resolution : 4M(2688X1520)/4M(2560X1440)/1080P(1920X1080)/720P(1280X720)/D1(704X576/704X480)/CIF(352X288/352X240) BLC Mode : BLC / HLC / WDR(120dB)
Frame Rate : 4M(1~20fbs)/3M(1~25fbs)/D1/CIF(1~25fbs)/720P(1~25fbs) White Balance : Auto/Natural/Street Lamp/Outdoor/Manual
Bit Rate : 24kbps~10240Kb/S Gain Control : Auto/Manual
Motion Detetion : Off / On (4 Zone, Rectangle) Noise Reduction : 3D DNR
Region of Interest : Off / On (4 Zone) Motion Detetion : Off / On (4 Zone, Rectangle)
Mirror : Off / On Region of Interest : Off / On (4 Zone)
Privacy Masking : Off / On (4 Area, Rectangle) Mirror : Off / On
Flip 0°,90°,180°,270° Privacy Masking : Off / On (4 Area, Rectangle)
6.Audio 5.Audio
Compression : G.711a/G.711Mu/AAC/G.726 Compression : G.711a/ G.711Mu/ AAC/ G.726
Interface : Built-in Mic
6.Network
7.Intelligence Ethernet : RJ-45 (10/100Base-T)
Smart detection : Tripwire/Intrusion/Abandoned Object/Scene Change/Missing Object/Fasti-Moving/Parking Detection/Crowd Gathering Estimation/Loitening Detection/Face detect Protocol : HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability : ONVIF, PSIA, CGI;
8.Network Max. User Access : 20 Users
Ethernet : RJ-45(10/100Base-T) Edge Storage : NAS Local PC for instant recording
Wifi : N/A Web Viewer : IE, Chrome, Firefox, Safari
Protocol : IPv4/IPv6,HTTPS,SSL,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,IP Filter, QoS, Bonjour,802.1x Management Software : Smart PSS, DSS, Easy4ip
Compatibility : ONVIF,PSIA,CGI Smart Phone : IOS, Android
Max.User Access : 20 users
Web Viewer : IE, Chrome, Firefox, Safari 7.Interface
Management Software : Smart PSS, DSS, Easy4ip Video Interface : N/A
Smart Phone : IOS, Android Audio Interface : Built-in Mic
RS485 : N/A
9.Auxiliary interface Alarm : N/A
Memory Slot : N/A
RS485 : N/A 8.Electrical
Alarm : N/A Power Supply : DC12V, PoE (802.3af)(Class 0)
PIR Sensor Range : N/A Power Consumption : <4.8W
10.General 9.Environmental
Power Supply : DC12V,PoE(802.3af) Operating Conditions : -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Power Consumption : Max 5.8W Strorage Conditions : -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Working Environment : -40° ~+60 °Less than 95%RH Ingress Protection : IP67
Ingress Protection : IP67
Dimensions : 157*157*138mm 10.Construction
Weight : 0.46kg Casing : Metal

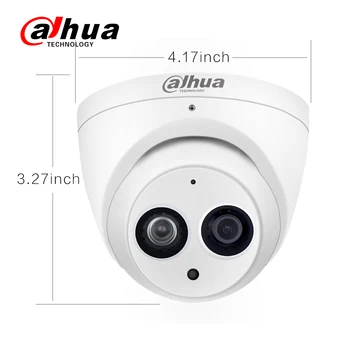

Dimensions : Φ106mm×93.7mm (4.17”×3.69”)
Net Weight : 0.47Kg (1.04lb)
Gross Weight : 0.65Kg (1.43lb)





Type

ip camera
Supported Operating Systems

windows xp
High Definition

4.0 Megapixels
Lens (mm)

2.8mm
Style

Dome Camera
Certification

CE
Connectivity

IP/Network Wired
Installation

Ceiling
Wall Bracket

Ceiling
Power Consumption(W)

Max 3.7W
Color

White
Minimum Illumination(Lux)

0.01ux/F2.0(Color),0lux/F2.0(IR on)
Sensor

CMOS
Megapixels

4MP
Special Features

Waterproof / Weatherproof
Storage

None
Alarm Action

Email Photo
Video Compression Format

H.265
Power Supply

With POE
TF Card

None
IR Distance(m)

30M
is_customized

No
Power Supply(V)

DC12V,PoE(802.3af)
Model Number

IPC-HDW4433C-A or IPC-HDW4631C-A
Viewing Angle

90°
Technology

Infrared
Dimensions (L x W x D)(mm)

D110x95mm
Supported Mobile Systems

Android
Network Interface

RJ-45 10/100Mb Ethernet Slot
Audio Output

1CH RCA
Type of IP Camera

Dahua CCTV IP Camera
Lens

2.8mm/3.6mm
Image Sensor

1/3'' 4 Megapixel progressive scan CMOS
Compression

H.264/H.264H/H.264B/MJPEG
Compatibility

ONVIF,PSIA,CGI
Smart Phone

iPhone,iPad,Android, Windows Phone
Interface

Built-in Mic
Working Environment

-40°C~+60°C, Less than 95% RH
Firmware

English, Spanish, French, Russian
Management Software

Smart PSS, DSS, Easy4ip
Features 01

Security Camera
Features 02

PoE Camera
