Specifications
| Model | ESCAM Pearl QF100 |
| Features | |
| System security | Account, password authority management |
| Free DDNS | Free DDNS, supports dynamic IP. |
| View by phone | Support HD pic IOS, Android mobile view (iOS 4.3, Android OS 2.3 above) |
| Local Storage | support up to 32GB MicroSD card, 24-hour loop recording. |
| Monitor Advantage | Support PC computer monitoring, smartphone multi-pic view. |
| PnP | Plug & Play,99% penetration rate, Easy to setup: 1. connect the network cable and power adapter. 2. install APP, scan UID code to add camera. 3. Click online camera to view the camera. |
| Sever cluster | Using Amazon Cloud PnP servier cluster, intelligent application and super stable |
| UID Technology | UID scan technology applied, easy to operate, and highly confidential. |
| Super Client | 1,4,9,16,25,36, 64,81-channel central management software, no user number limitation, centralized surveillance, remote record and playback, alarm email ect. |
| System | |
| OS | Embedded Linux OS |
| Control protocol | ONVIF 2.0 protocol, high interoperability |
| Video coding | Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture |
| Bit Rate | CBR/VBR, output bit rate range:128～4096kbps |
| Processor | Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor |
| Video | |
| Compression Format | H.264 baseline profile@levels:3.1/Motion-JPEG |
| Frame rate | 30fps/24fps（720p） |
| Resolution | 720P(1280*720), VGA(640*480), QVGA(320*240) |
| Picture Adjustment | Contrast, Brightness, Saturation are adjustable. |
| Sensor | 1/4 720p Progressive CMOS sensor |
| Minimum illumination | 0.8Lux/F1.4 (colourful model) ,0.3Lux/F1.(B&W mode) |
| SNR | ≥39dB |
| IR control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
| Electronic shutter | 1/50s(1/60s)-1/100, 000s |
| CMOS | support AWB, AGC, BLC |
| Lens/viewing angle | [email protected]/56.14° |
| Night Vision | |

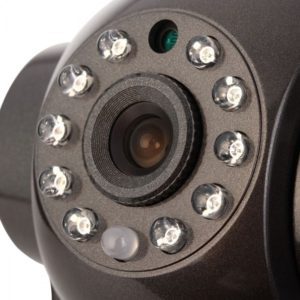

| Night vision | Dual IR-CUT Filter auto switch, 10pcs 850nmΦ5mm LED,10m IR distance |
| Audio | |
| Compression format | ADPCM/32kbps |
| Output | 1 Channel Line out (3.5mm phone jack)&Buit in speaker(8Ω1W) |
| P/T | |
| P/T | Pan:355°, Tilt:120° |
| Preset Postion | suppor up to 15 preset postions |
| Network | |

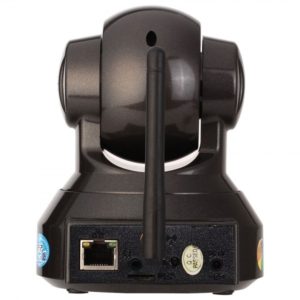

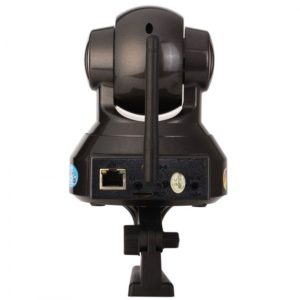

| network interface | 10Base-T/100Base-TX Ethernet interface |
| Network Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc. |
| wireless network security | WPS encryption |
| Online visitor | Support 4 online visitors simutaneoursly |
| IP address | Dynamic IP and static IP address |
| WIFI | WIFI 802.11 b/g/n |
| Others | |
| housing material | engineering plastics |
| Application environment | Indoor |
| Rated Voltage | DC5±0.3V |
| Temperature | -10~50 ℃ |
| Power consumption | rated power:3.5W(IR opening )/maximum power:7W(P/T working ) |
| Accessories | Power adapter, user manual, warranty card, mounting bracket, screws. |
| Dimensions | (4.33 x 4.13 x 4.92)” / (11 x 10.5 x 12.5)cm (L x W x H) |
| Weight | 10.58oz / 300g |
| Alarm | |
| Motion Detection | Support motion detecting |
| System Requirement | |
| System configuration | XP,Vista, iPhone iOS4.3, The android version 2.3 or higher |
| Certificate | |
| Certificate | ISO FCC CE RoHS |
Package Includes
- 1 x IP Camera
- 1 x US Standard Power Adapter
- 1 x CD Driver
- 1 x Bracket
- 1 x Screw Pack
- 1 x Wireless Antenna
- 1 x Network Cable
- 1 x User Manual

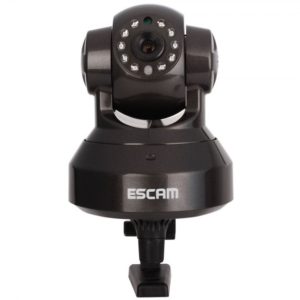

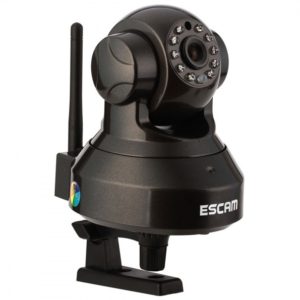

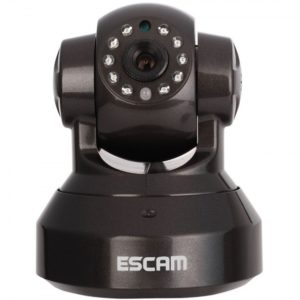

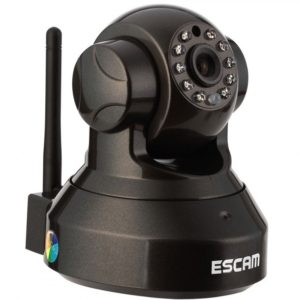

ESCAM Pearl QF100 Wireless 720P P2P Indoor Security IP Camera with IR-CUT Black (US Plug)
